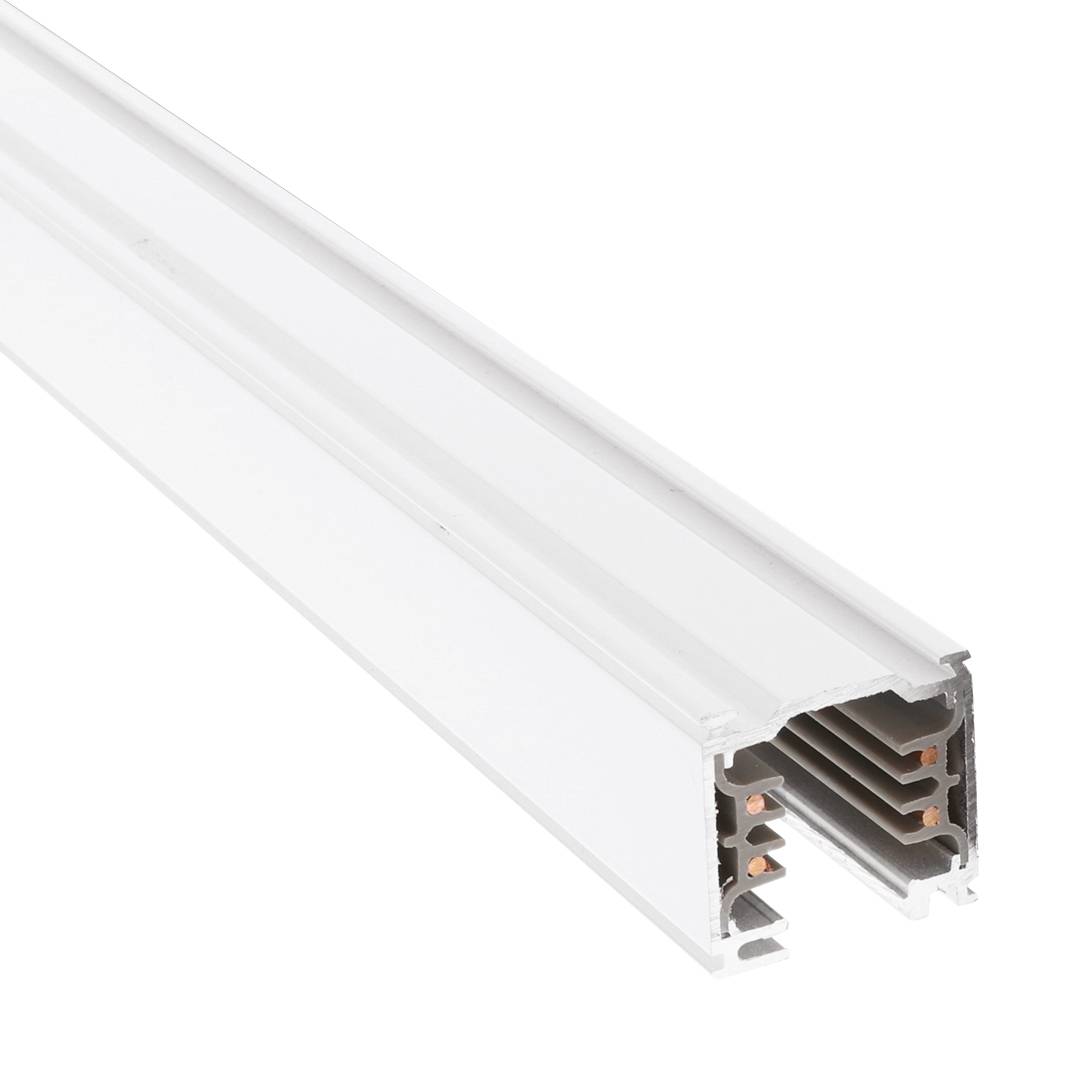

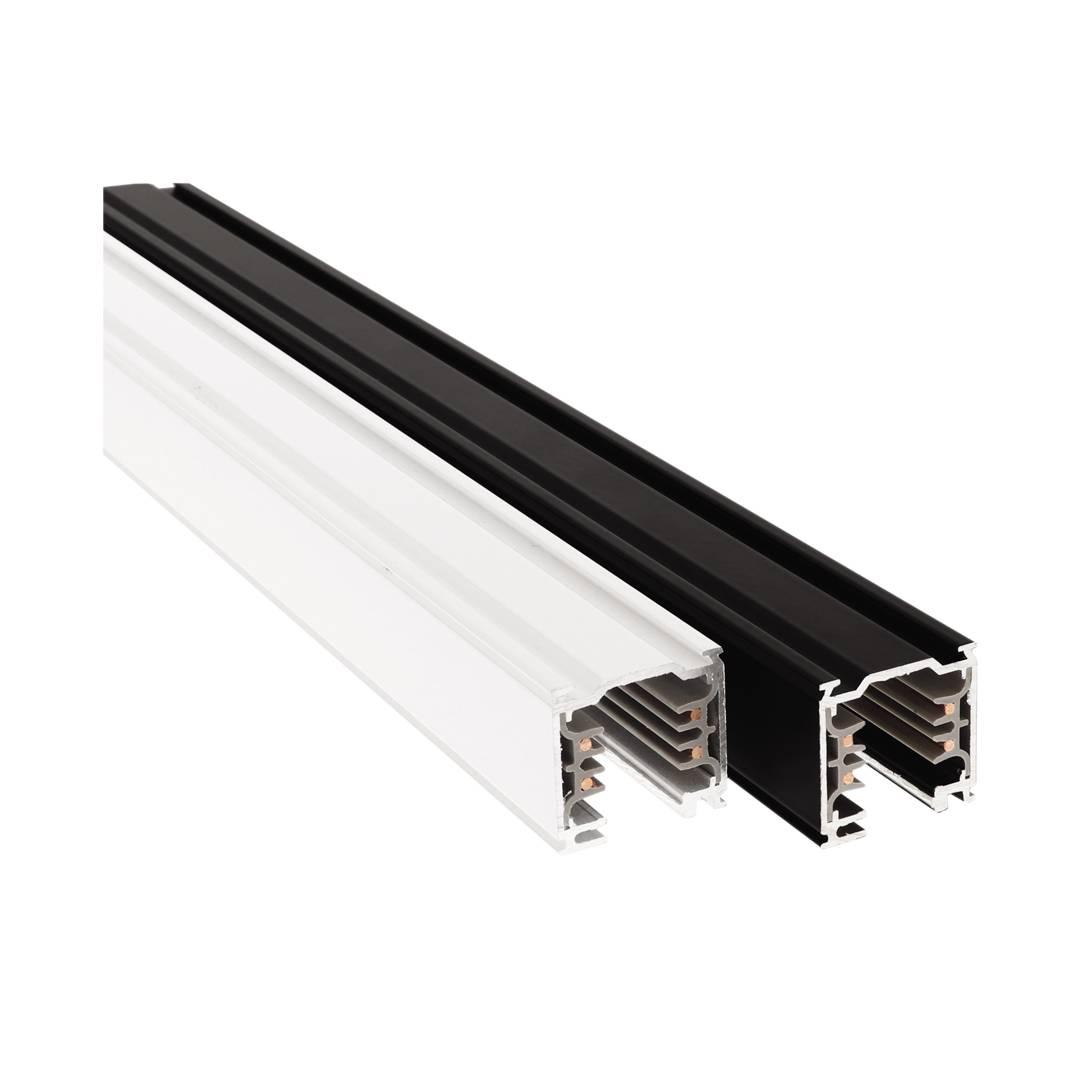

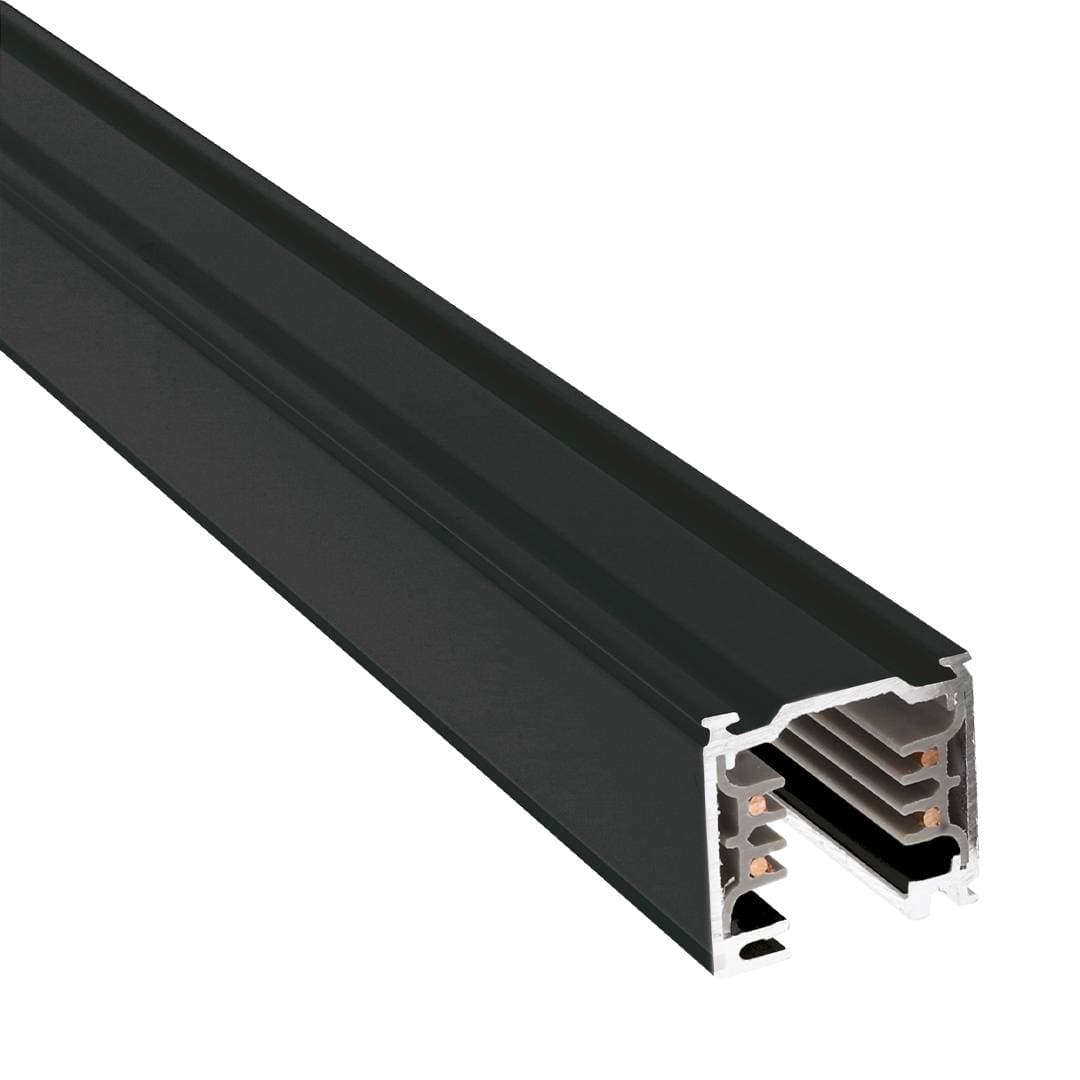

Exposed track.
Mains voltage 220/250V.
The three-phase connection allows a total current of 16A on each circuit. This corresponds to 3 x 3680VA = 11040VA.
A track can support a load of 6kg/0.20m with a maximum distance of 1.00m between fixing points or a load of 3kg/0.20m with a maximum distance of 2.00m between fixing points.
| Code | Adjustability | Base Shape | Body Material | Colour / Finish | Dimmable Option | IP Rating | Length | Mounting Type | Sensor Option | Width | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TR22030 | Not adjustable | Linear | Aluminium | Black | None | IP20 | 1,000 mm | Ceiling,Suspended | None | 35 mm | |
| TR22031 | Not adjustable | Linear | Aluminium | White | None | IP20 | 1,000 mm | Ceiling,Suspended | None | 35 mm | |
| TR22130 | Not adjustable | Linear | Aluminium | Black | None | IP20 | 2,000 mm | Ceiling,Suspended | None | 35 mm | |
| TR22131 | Not adjustable | Linear | Aluminium | White | None | IP20 | 2,000 mm | Ceiling,Suspended | None | 35 mm |
