Used in office, classroom, and meeting room applications, the Solis panel range is designed with visual comfort in mind to be suitable for reading, writing and computer-based tasks. Supplied with a quick-fit connector for fast installation, the back-lit design provides efficient performance and improved robustness during transit. The range provides many options so that you can convert to be an emergency luminaire quickly with our LEDEP10 module and select from non-dimmable, 0-10V, and DALI2 dimming options to suit your project.
| Code | Ambient Temperature | Colour / Finish | Description | Efficiency | Driver Output Voltage | Height | Input | Install Connector Type | IP Rating | Length | Connection Output | Power Factor | Warranty | Width | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

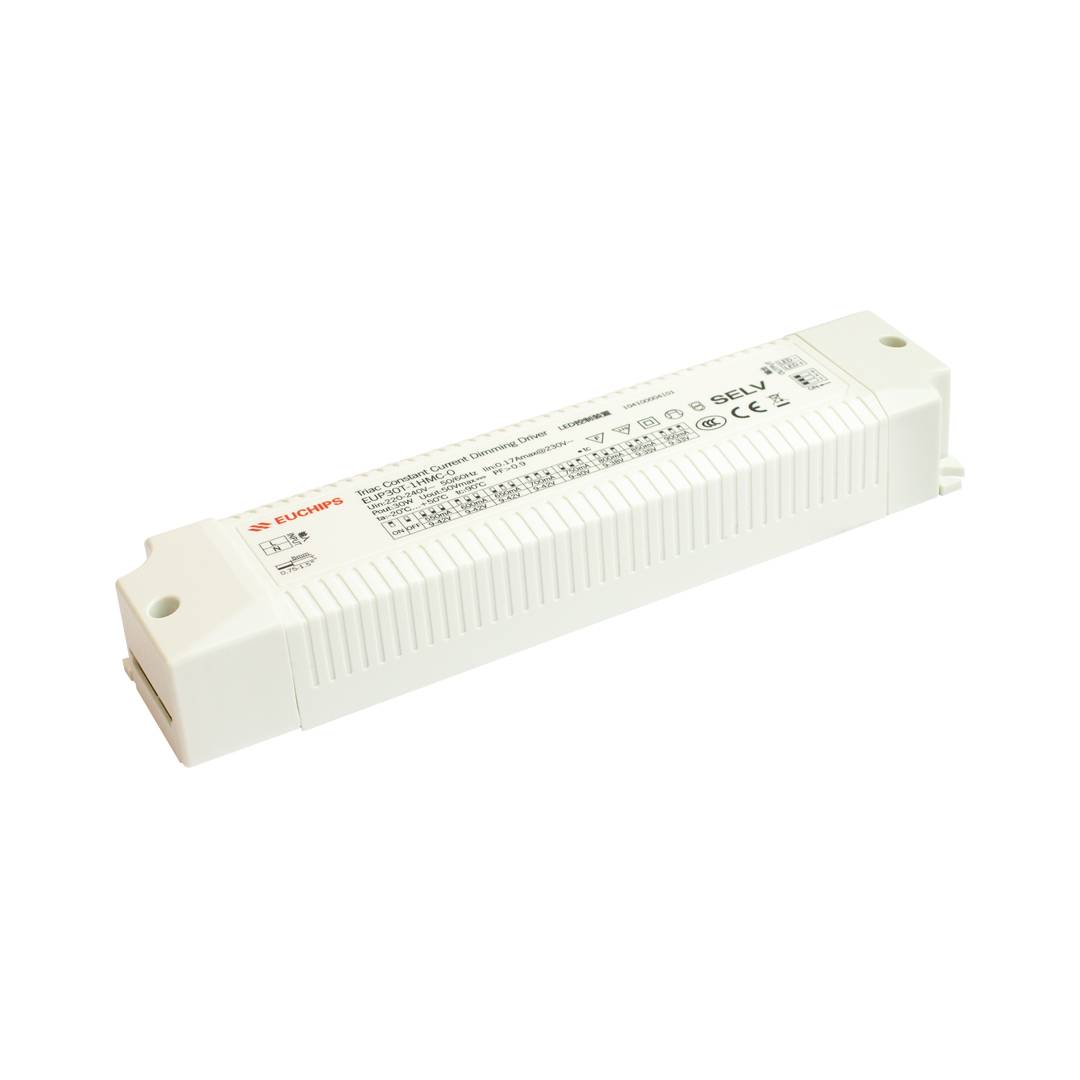

| EUP30T1HMC0 | -20 – 50 °C | White | SOLIS Driver, 30W Panel, TRIAC Mains Dim | 87 | 3 – 40 V | 42.5 mm | 220-240V AC | Mains: Push-fit terminals 0.75 - 1.5mm² DC: Plug & Play connectors | IP20 | 28.5 mm | 0.75- 2.5mm² | 0.9 | 3 years | 185 mm |
